인덕티브 베어링리스 엔코더

Inductive Bearingless Encoder

베어링 없는 로터 + 스테이터 구조의 초박형 비접촉 엔코더. 인덕티브 스캐닝 기술로 외부 자기 간섭에 강하며, 로봇 관절 · 서보 모터 등 경량 고정밀 회전 제어에 최적화된 차세대 엔코더입니다.

A bearingless, ultra-thin, non-contact inductive encoder. Built for lightweight, high-precision rotary control such as robot joints and servo motors.

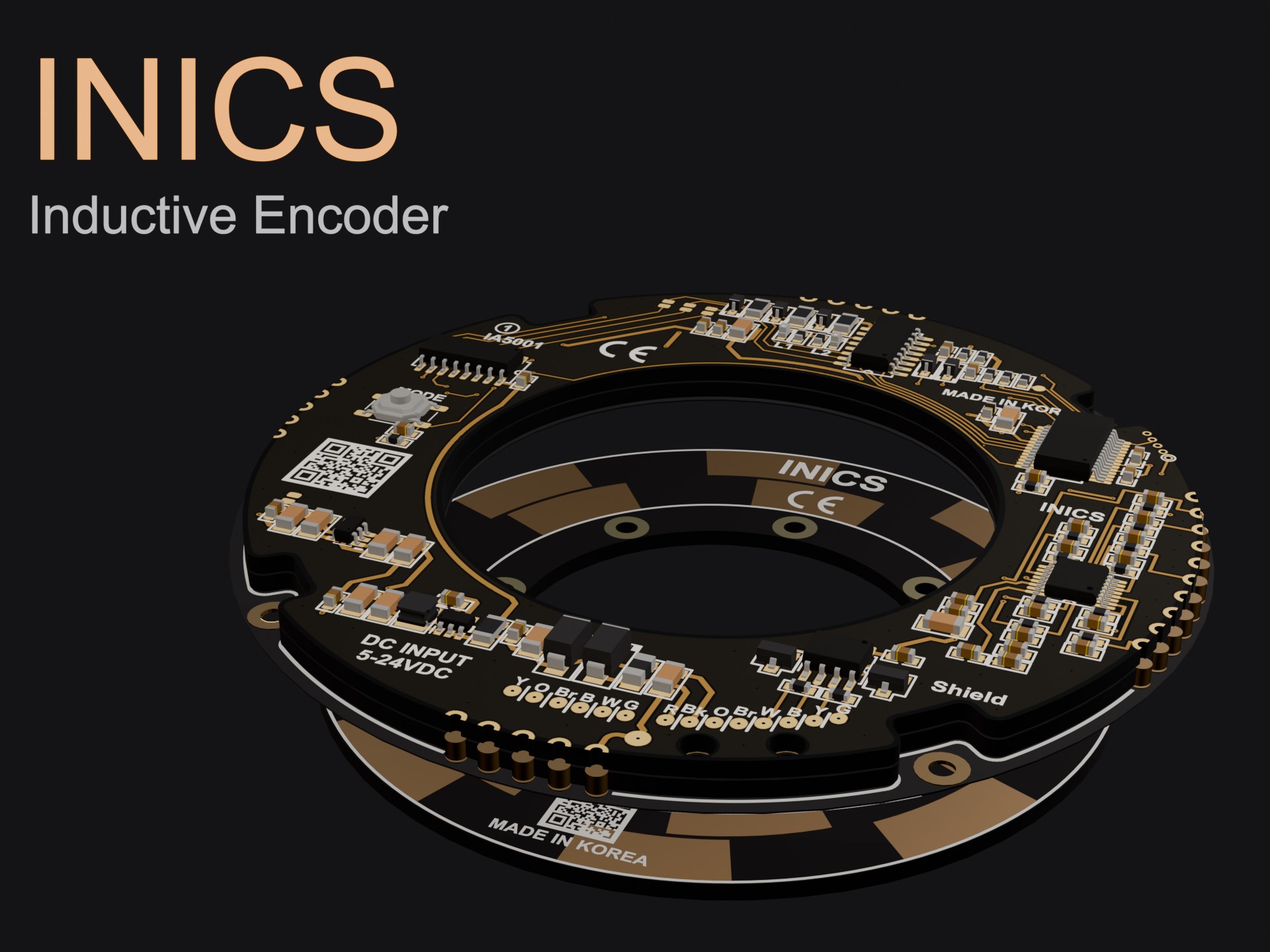

아이닉스 인덕티브 베어링리스 엔코더 로터·스테이터 링 타입 제품 사진 (INICS Inductive Bearingless Encoder, rotor and stator ring type, IA5001)

Product Video · 제품 영상

19 BIT
싱글턴 분해능 524,288 pos/rev
Single-turn Resolution 524,288 pos/rev
±0.006°
고정밀 각도 정확도
High-Precision Angular Accuracy
10,000 RPM
최대 회전 속도
Max. Rotational Speed
DC 5–24V
프리볼트 전원 입력
Free-Voltage Power Input

Key Features · 제품 특징

FEATURE 01
인덕티브 스캐닝 기술
Inductive Scanning Technology
전자기 유도 원리로 회전 위치를 읽는 감지 방식. 광학식 대비 분진 · 오일 · 습기에 강하고, 마그네틱 방식 대비 외부 자기장 간섭에 강한 차세대 감지 기술입니다.
A sensing method that reads rotary position by electromagnetic induction. Stronger against dust, oil and moisture than optical types, and more immune to external magnetic interference than magnetic types.
FEATURE 02
초박형 · 비접촉 · 경량 베어링리스 구조
Ultra-Thin / Non-Contact / Lightweight / Bearingless
베어링이 없는 로터 + 스테이터 분리형 구조로 초박형 · 경량 설계가 가능하며, 기계적 마모가 없어 수명이 깁니다. 중공축(할로우 샤프트) 설계로 배선 · 축 통과가 자유롭습니다.
The bearingless rotor + stator design enables an ultra-thin, lightweight build with no mechanical wear for a long service life. The hollow-shaft design allows free routing of cables and shafts.
FEATURE 03
3가지 동작 방식 지원
3 Operating Modes — Incremental / Single-turn Absolute / Multi-turn Absolute
인크리멘탈, 싱글턴 앱솔루트, 멀티턴 앱솔루트를 모두 지원하여 장비 특성과 제어 방식에 맞는 구성을 선택할 수 있습니다.
Supports incremental, single-turn absolute and multi-turn absolute modes, so the configuration can be matched to the machine and its control scheme.
FEATURE 04
5가지 출력 인터페이스
5 Output Interfaces
산업 표준 시리얼 통신부터 인크리멘탈 펄스 출력까지 폭넓게 지원합니다.
Supports a wide range of outputs, from industry-standard serial communications to incremental pulse output. BiSS-C SSI SPI UART ABZ

Structure · 베어링리스 구조

Bearingless · Rotor + Stator

베어링을 없애자, 더 얇고 더 가볍게

Remove the Bearing — Thinner and Lighter

로터와 스테이터가 기계적으로 연결되지 않는 완전 분리형 구조입니다. 로터 링은 장비의 회전축에, 스테이터는 고정부에 각각 장착되며 두 부품 사이에는 어떤 접촉도 없습니다.

A fully separated design in which the rotor and stator are not mechanically linked. The rotor ring mounts on the machine's rotating shaft and the stator on the fixed part, with no contact at all between the two.

  • 기계적 마모 제로 — 접촉 부품이 없어 마모에 의한 수명 한계가 없습니다. Zero mechanical wear — no contacting parts, so no wear-limited service life.
  • 초박형 · 경량 — 베어링 하우징이 필요 없어 두께와 무게를 최소화합니다. Ultra-thin / lightweight — no bearing housing needed, minimizing thickness and weight.
  • 중공축(Hollow Shaft) — 케이블 · 배관 · 축을 중심부로 통과시킬 수 있습니다. Hollow shaft — cables, tubing and shafts can pass through the center.
  • 장착 자유도 — 로터 · 스테이터를 각각 장비에 직결하는 빌트인 설계가 가능합니다. Mounting flexibility — built-in design with the rotor and stator mounted directly to the machine.
